Product Category: AGSE

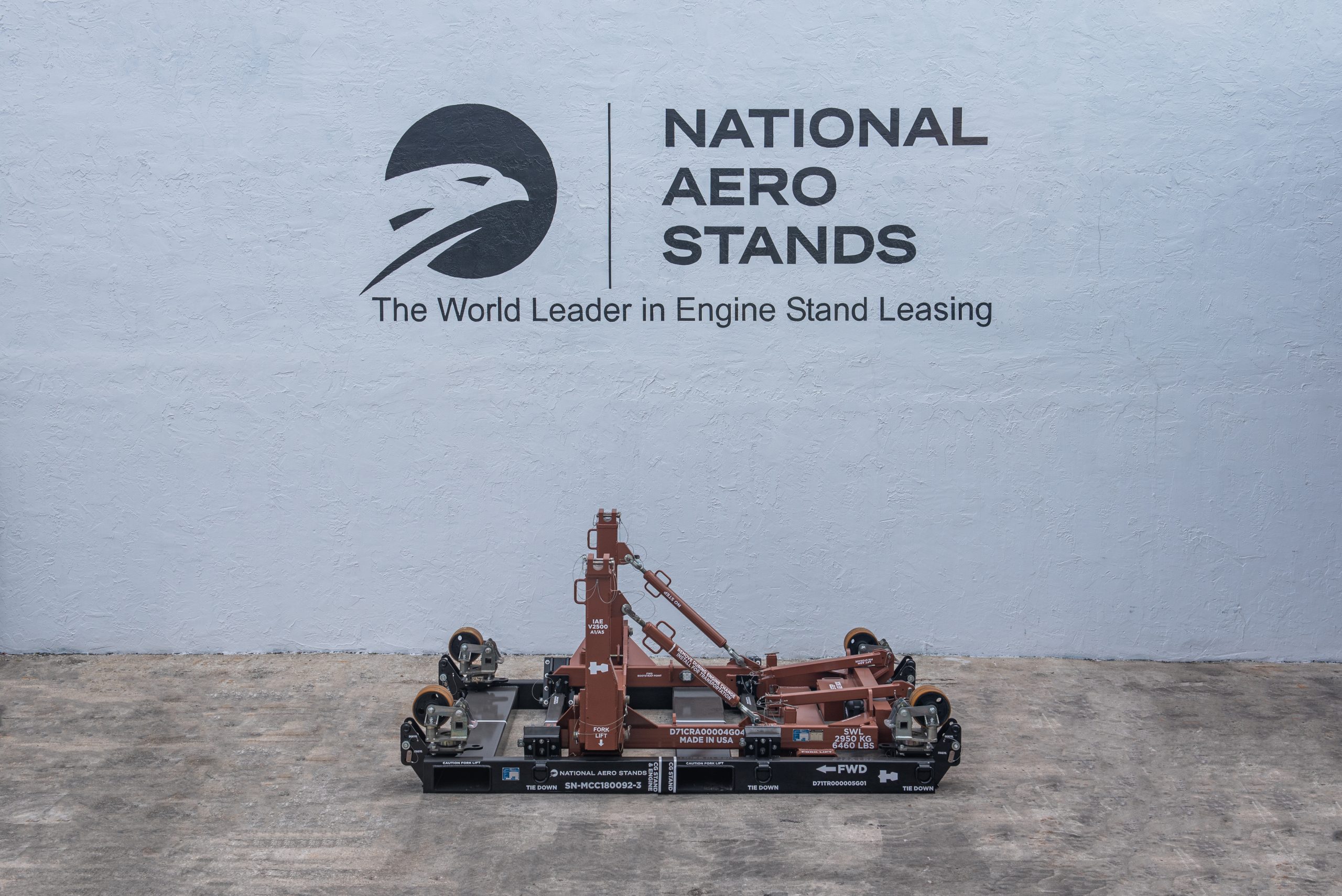

V2500-A1/5

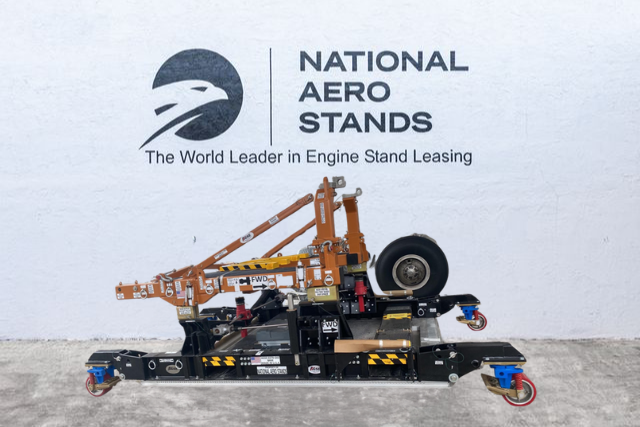

Trent 500/700 APS
RB211-535
n
Getting to Know Engine Stand
nThe AGSE Engine Stand RB211-535 represents the pinnacle of aviation maintenance equipment, specifically engineered for the renowned Rolls-Royce RB211-535 turbofan engine series. This professional-grade stand combines robust construction with versatile functionality, making it an essential tool for engine maintenance, storage, and transportation operations. The system consists of two main components: the AGSE-E052-G05 cradle and AGSE-E052-G06 base, working in perfect harmony to ensure safe and efficient engine handling.
n
Features and Applications Engine Stand
nThis sophisticated engine stand excels in versatility and practical application. Its bootstrap capability facilitates seamless on-wing engine removal and installation, while the palletized base frame ensures compatibility with aircraft cargo loading systems. The stand features dual-sided forklift access, enhancing operational flexibility in various maintenance environments. Four shock-absorbing retractable casters, equipped with brakes and swivel locks, provide stable mobility with a maximum towing speed of 3 MPH.
n
Technical Specifications Engine Stand
nThe stand’s design prioritizes durability and functionality through its steel welded frame construction with tubular arms. Roller shoes enable smooth transfer between bases, while integrated shock mounts ensure optimal engine protection during transport. The structure includes removable ground handling mounts and is finished with Skydrol-resistant enamel for enhanced durability. A convenient document storage container adds practical utility for maintenance documentation. The stand’s dimensions are optimized for both storage and transportation, with a total weight capacity suitable for the RB211-535 engine series.

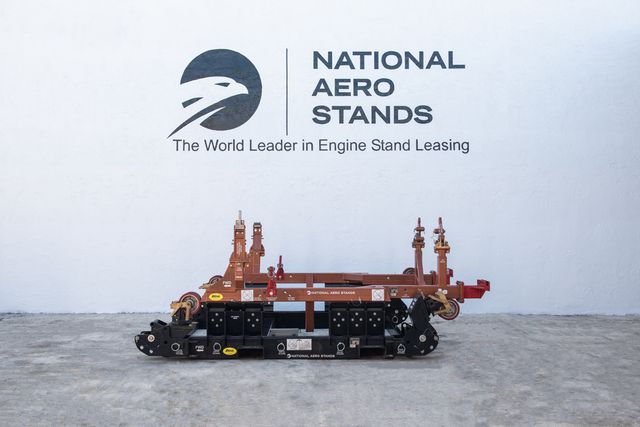

PW4000/JT9D
n
Getting to Know Engine Stand
nThe AGSE Engine Stand PW4000/JT9D represents a pinnacle of aviation maintenance equipment, specifically engineered for handling Pratt & Whitney’s PW4000 and JT9D series engines. This versatile low-profile shipping stand combines robust construction with practical functionality, making it an indispensable tool for engine maintenance operations. Manufactured with high-grade structural steel conforming to ASTM standards, the stand features a Skydrol-resistant enamel coating that ensures longevity and protection against harsh aviation fluids.
n
Features and Applications Engine Stand
nThis engine stand excels in versatility and operational efficiency. Its bootstrap capability enables seamless engine removal and installation operations, particularly optimized for MD-11 aircraft. The stand’s mobility system features four heavy-duty shock-absorbing caster assemblies, each equipped with 5″ wide x 10″ diameter polyurethane tread wheels. These wheels, rated at 5,000 LBS capacity each, ensure stable movement and precise positioning during maintenance procedures. The stand’s design prioritizes safety and convenience, incorporating position locks and face brakes on all casters. For transportation, it can be towed at speeds up to 3 MPH (5 Km/h) from either end. A secured document container on the base provides convenient storage for essential maintenance documentation. The stand’s compatibility with major freight aircraft, including B747, DC-10, and MD-11, enhances its logistics versatility.
n
Technical Design and Engineering
nThe engineering excellence of this stand is evident in its adaptable design and robust construction. External truck shipping shock mounts provide additional protection during transportation. The stand’s dimensions are optimized for both storage and operational efficiency, with adjustable height capabilities through extended casters. Its structural integrity is maintained even under maximum load conditions, demonstrating AGSE’s commitment to safety and reliability in aviation maintenance equipment.
