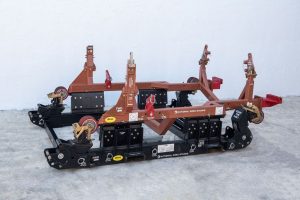

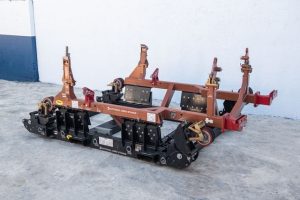

This engine stand excels in versatility and operational efficiency. Its bootstrap capability enables seamless engine removal and installation operations, particularly optimized for MD-11 aircraft. The stand’s mobility system features four heavy-duty shock-absorbing caster assemblies, each equipped with 5″ wide x 10″ diameter polyurethane tread wheels. These wheels, rated at 5,000 LBS capacity each, ensure stable movement and precise positioning during maintenance procedures. The stand’s design prioritizes safety and convenience, incorporating position locks and face brakes on all casters. For transportation, it can be towed at speeds up to 3 MPH (5 Km/h) from either end. A secured document container on the base provides convenient storage for essential maintenance documentation. The stand’s compatibility with major freight aircraft, including B747, DC-10, and MD-11, enhances its logistics versatility.

The engineering excellence of this stand is evident in its adaptable design and robust construction. External truck shipping shock mounts provide additional protection during transportation. The stand’s dimensions are optimized for both storage and operational efficiency, with adjustable height capabilities through extended casters. Its structural integrity is maintained even under maximum load conditions, demonstrating AGSE’s commitment to safety and reliability in aviation maintenance equipment.

• Part Number: AGSE-E006
• Compatible Engines: PW4000-94, JT9D series
• Base Support: 4 shock-absorbing caster assemblies
• Wheel Specifications: 5″ wide x 10″ diameter
• Caster Capacity: 5,000 LBS each
• Maximum Towing Speed: 3 MPH (5 Km/h)
• Dimensions without Engine: – Height: 50.0″ (54.0″ extended) – Width: 100.0″ – Length: 196.0″ – Weight: 4,580 LBS
• Dimensions with PW4000 Engine: – Height: 99.0″ (103.0″ extended) – Width: 100.0″ – Length: 196.0″ – Weight: 15,580 LBS
• Construction: ASTM-standard structural steel
• Finish: Skydrol-resistant enamel coating
• Aircraft Compatibility: B747, DC-10 & MD-11 freighters
