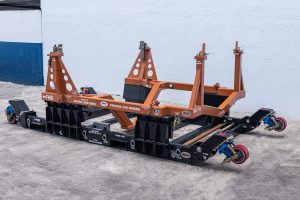

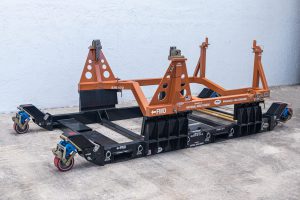

This premium engine stand excels in both stationary support and transportation scenarios. Its innovative design incorporates shock-absorbing mechanisms through integrated mounts and retractable casters, ensuring optimal protection during engine handling. The stand features high-capacity polyurethane wheels (5″ x 10″) rated at 5,000 lbs per caster, complete with braking systems and swivel locks for secure positioning. For enhanced durability, the structure is protected by Skydrol-resistant enamel paint and includes corrosion-resistant hardware throughout.

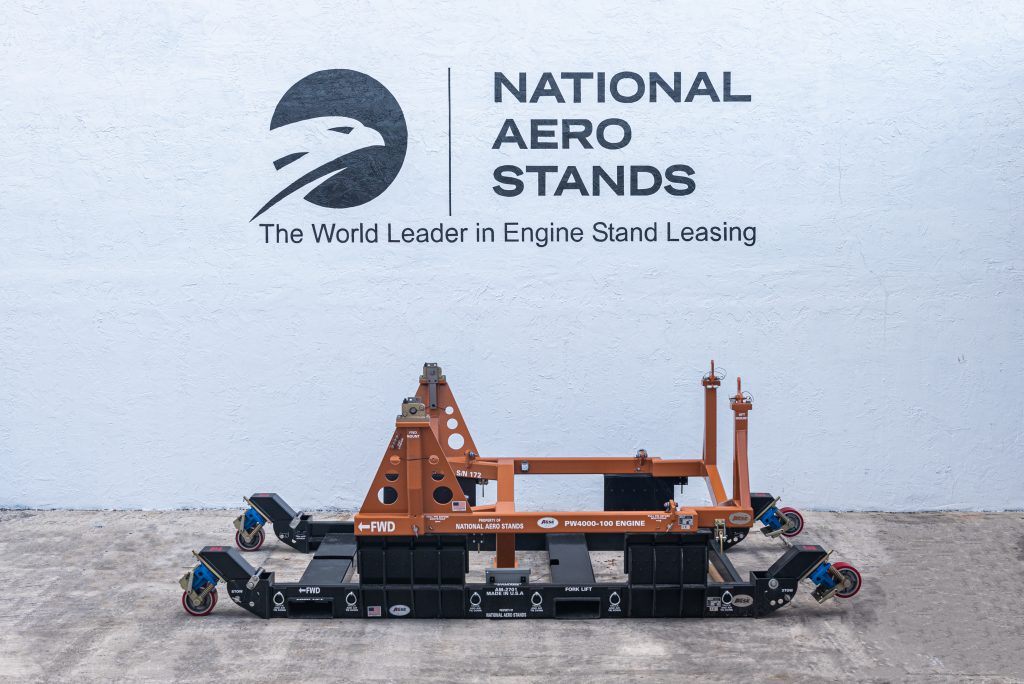

The stand’s adaptable design accommodates different PW4000-100 series engine variants with precise dimensional configurations. When configured for PW4164/PW4168 engines, it maintains a centerline height of 64.5 inches (164 cm), while the PW4168A setup positions at 64.75 inches (164 cm). The structure incorporates forklift accessibility from both sides and features strategic tie-down points for secure transportation. A convenient document storage compartment is integrated into the design, ensuring important paperwork stays with the equipment.

• Part Numbers: AM-2700 (Cradle), AM-2701 (Base)
• Maximum Towing Speed: 3 MPH
• Caster Capacity: 5,000 lbs per caster
• Wheel Specifications: 5″ wide x 10″ diameter polyurethane tread
• Dimensions with PW4164/PW4168:Length: 210″ (533 cm)
• Width: 117″ (297 cm)
• Height: 118″ (300 cm)
• Engine Centerline Height: 64.5″ (164 cm)
• Total Weight: 15,550 lbs (7,053 kg)
• Dimensions with PW4168A:Length: 210″ (533 cm)
• Width: 123″ (312 cm)
• Height: 119″ (302 cm)
• Engine Centerline Height: 64.75″ (164 cm)
• Total Weight: 15,850 lbs (7,189 kg)
• Stand Without Engine:Length: 198″ (503 cm)
• Width: 114″ (290 cm)
• Height: 70″ (178 cm)
• Base Weight: 3,900 lbs (1,769 kg)
